Residential Hybrid Solar Installation

Project Type: Residential
System: Hybrid Solar Installation

This residential client required a reliable, cost-effective energy solution to protect their home against ongoing power outages while reducing escalating electricity costs.

The Challenge

Frequent load shedding was disrupting daily life and compromising home security. At the same time, rising electricity tariffs resulted in increasingly high monthly utility bills. The client needed a system that would deliver:

• Reliable 24/7 power availability

• Reduced dependence on the national grid

• Long-term energy cost savings

The Solution

Zebra-Tech designed and installed a high-performance hybrid solar system tailored to the household’s energy needs. The solution included:

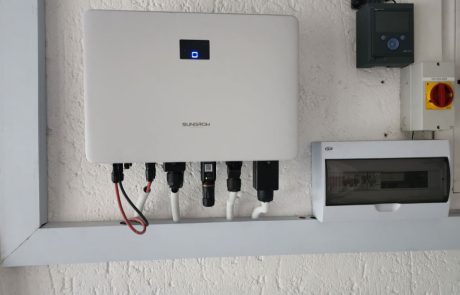

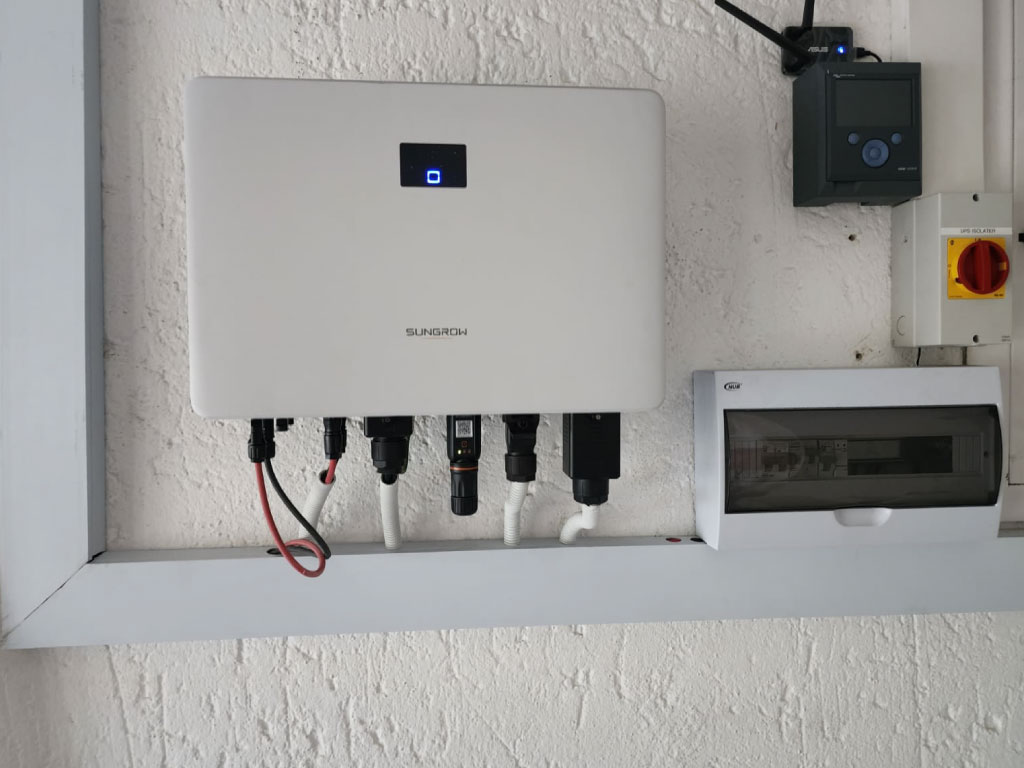

• Sungrow 6kW Hybrid Inverter

• 10kWh Lithium Battery Storage System

• 16 × 650W Solar Panels

This configuration allows excess solar energy generated during the day to be stored and used during peak evening hours or power outages, ensuring seamless operation and uninterrupted power.

Performance Results (12-Month Analysis)

Technical Summary

Over a 12-month monitoring period, the system generated an average of 14.11 kWh per day, successfully offsetting 58% of the household’s total energy demand.

The hybrid inverter intelligently prioritised solar usage while maintaining battery health, ensuring critical loads remained powered during high-stage load shedding. No system faults or production anomalies were recorded, confirming optimal performance and reliability.

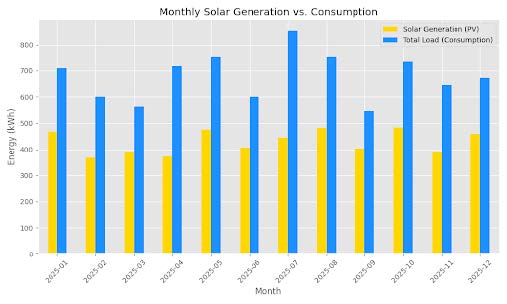

SOLAR GENERATION VS. CONSUMPTION OVER TIME:

The Outcome

✔ Significant reduction in electricity costs
✔ Reliable backup power during outages
✔ Increased energy independence
✔ Long-term protection against tariff increases

This installation demonstrates how a well-designed hybrid solar system can deliver both peace of mind and measurable financial savings for residential homeowners.
